IR Slotted LM393 Sensor Detection Module V3
$2.85
Description:
This module is the smart car speed module! Groove beam photoelectric using, use a non-transparent object to trigger the Groove (Like Slot Car Blade). Output is 5V TTL level. Schmitt trigger pulses, very stable, can be used to measure car speed, distance measurement applications and so on! 2 x Holes for mounting under Track allowing Car Blade no interference with board. Used mostly for MDF or DIY tracks
NOT for plastic AFX®, Tyco®, Scalextric®, or Carrera® Tracks on flat surface. This sensor will output a

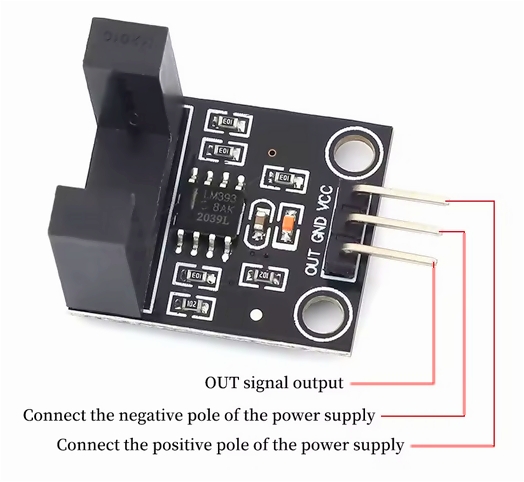

HIGH Signal to DIA unit so set DIA sensor detect to HIGH ! NOTE: There are 2 Types of SLOT TYPE units, please see Photo galley to chose your selected type. Some pins have S-N-P, or S-P-N pins. If you have old Type S-P-N, then you can order our
Sensor Plug Adapter here. New units we currently sell our S-N-P Type.
Package Included: 1 x PCS IR Infrared Slotted Optical Speed Measuring Sensor Detection Optocoupler Module
Voltage: 5 VDC
NOTE: You MUST reverse the Positive + & negative – Pins if using these with our DIA Data cables or they will Not Work correctly, you can order a Sensor Plug Adapter to work with this Sensor Type 2
